2x 6V toroidal transformer 15VA

part number: 08010

in stock

€ 39.60 (inc VAT)

Model:
Amount:

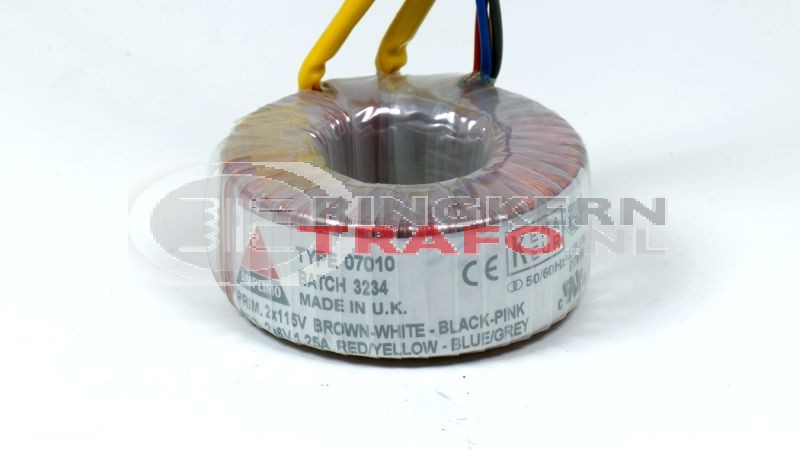

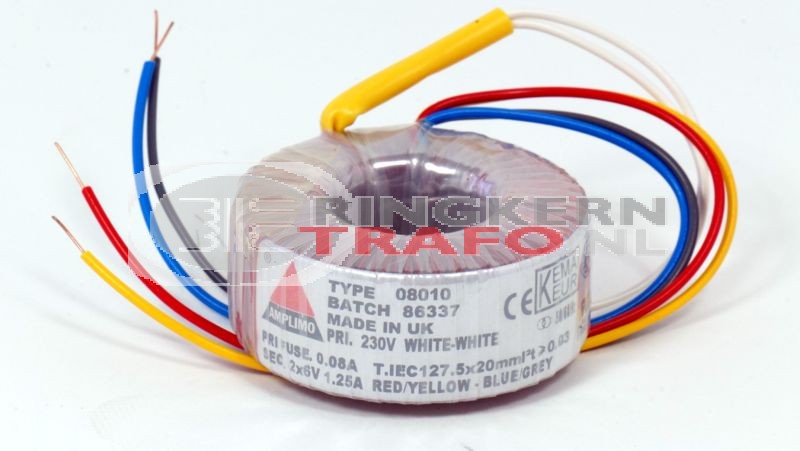

Amplimo toroidal transformer type 08010 / 07010.
The primary winding can be chosen between 230V(08010) or 2x115V(07010). The two identical secondary windings are 6V and can supply 1.25A each. When the secondaries are used in parallel this transformer can supply 6V@2.5A . The two secondaries in series will result in 12V with a maximum current of 1.25A.

Specifications :

Power rating : 15VA
Primary winding : 230V or 2x115V
Secondary winding : 2x 6V - 1.25A
Secondary windings in series gives : 12V - 1.25A
Secondary windingd in parallel gives : 6V - 2.5A
Diameter : 60mm
Height : 28mm

Downloads

Download datasheet 08010 (PDF)

Download datasheet 07010 (PDF)

KEMA KEUR Approval

This transformer is wound , tested and approved according to the European standard EN61558.

The products aswell as the production location are inspected regularly by a certified body.

"KEMA KEUR" is recognised in whole of Europe and offers unrestricted access to a lot of markets worldwide.
ENEC Approval

The quality approval ENEC for electrical apparatus and electronic products indicates
that this product meets the European Safety Standards and has been tested and approved
by a "Certified Body"
UL/CSA Approval

Tested and approved by Underwriters Laboratories. This approval is used for the American and Canadian market.
This product has been tested and appoved by UL and carries the UL and/or CSA approval.
