8dB 10kohm PCB signal transformer 1:1

TM81P 10kohm signaalprinttrafo 1:1

part number: TM81P

in stock

€ 51.00 (inc VAT)
Amount:

The signaltransformer TM8P is a 1:1 PCB-transformer.

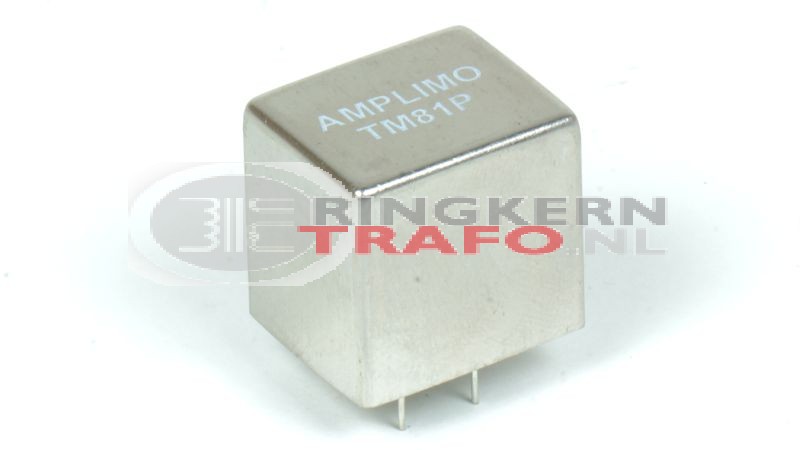

The mounting bracket shown in the picture can be ordered seperately, but is not included in the shipment by default.

Specifications of the TM8P signaltransformer :

  • transformation ratio :    1 : 1
  • frequencyrange +/-3dB   :  30 - 25000 Hz
  • max. input voltage @ 20Hz  :  2V = +8dB
  • primary connection :   source of max. 10 kohm
  • secondary connection :   min. 10 kohm
  • max. voltage between primary and secondary :   100V
  • dimensions excl. PCB-pins (LxWxH):  24 x 20 x 24mm
