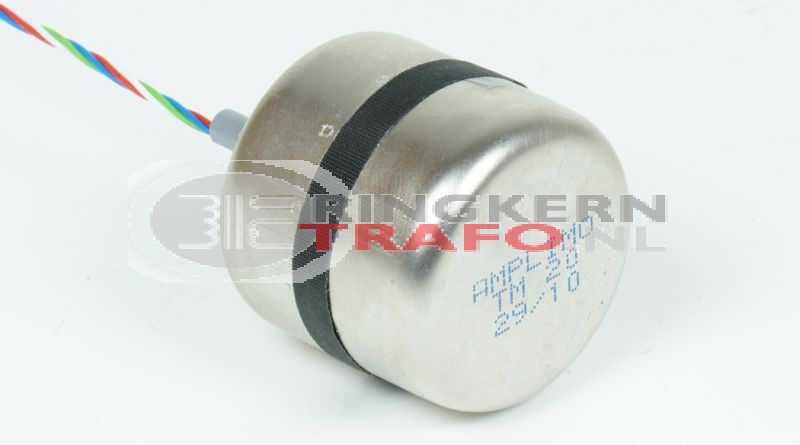

The signal transformer TM20 is a 20dB transformer with a 1:1 ratio. This is the 600ohm version (for 10kohm version see partnr.TM21)

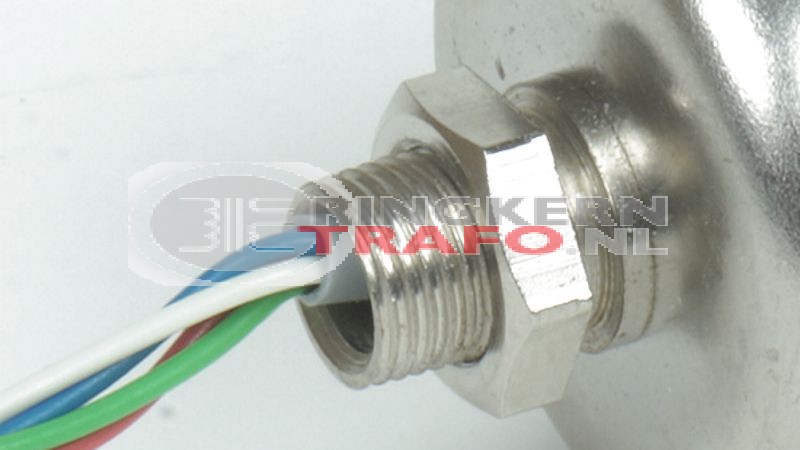

Connections are made with attached wires.

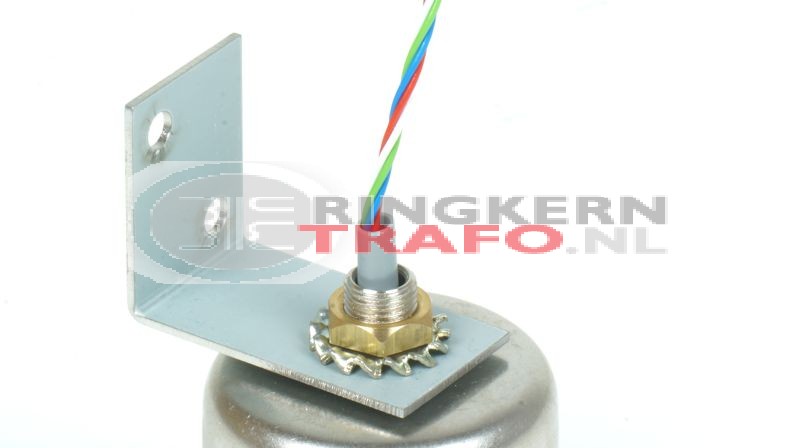

The mountingbracket shown in the pictures is not supplied in the shipment by default. You can order this seperately.

Specifications :

• transformation ratio  :  1 : 1
• frequency range +/-3dB  :  30 - 25000 Hz
• max. inputvoltage @ 20Hz  :  8V = +20dB
• primary connection :   bron van max. 600 ohm
• secondary connection :   min. 600 ohm
• primary wires : red - green
• secondary wires :  blue - white
• wire length : approx. 70mm
• max. voltage between primary and secondary winding :   100V
• dimensions excl. screwthreat (dia x h):  38 x 37 mm
