The signal transformer TM888 has one primary winding and three equal secondary windings (1 : 1+1+1).

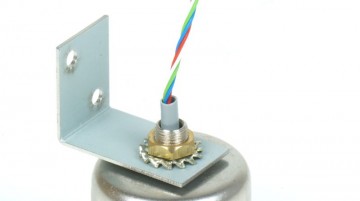

The shown mountingbracket can be ordered separately and is not in the shipment by default .

Specifications :

• transformation ratio :   1 : 1+1+1
• frequency range +/-3dB:    30 - 25000 Hz
• max. inputvoltage @ 20Hz:    2V = +8dB
• primary connection:   source of max. 600 ohm
• secondary connection:   min. 600 ohm
• primary wires: red - green
• secondary wires:  (1) blue - white
                               (2) yellow - brown
                               (3) black - grey

• length of wires : 70mm
• max. voltage between primary and secondary:   100V
• dimensions excl. screwthreat (dia x h):  30 x 27 mm
