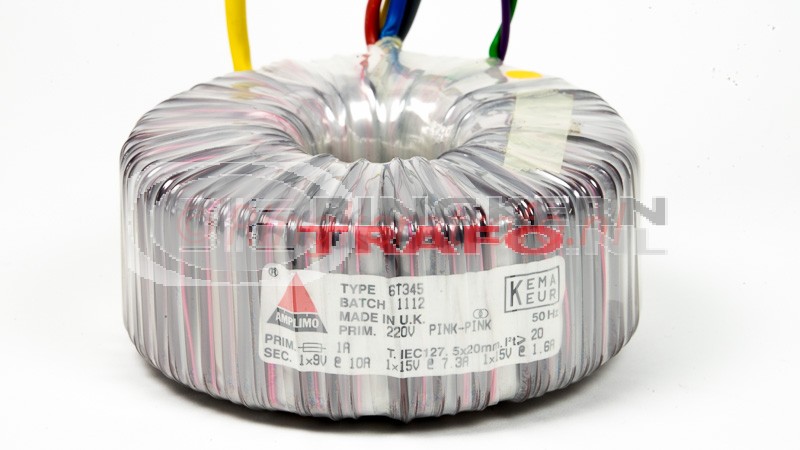

Amplimo toroidal transformer type 6T345 was designed for supplying microcontrollers and microcomputers. This transformer can be used to create a power supply for +5V  6.0A and +12V 4.6A and -12V 1.0A after rectification, smoothing and suitable stabilisation.

Specifications :

• Power rating : 225VA
• Primary winding : 220V
• Secondary winding 1 : 9VAC - 10.0A
• Secondary winding 2 : 15VAC - 7.3A
• Secundary winding 3 : 15VAC - 1.6A
• Diameter : 110mm
• Height : 52mm
• Mounting materials are included in the shipment
