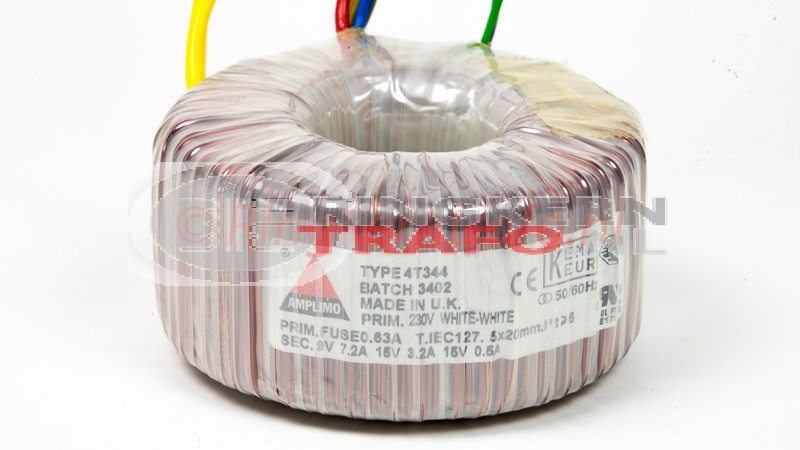

Amplimo toroidal transformer type 4T344 was designed for supplying microcontrollers and microcomputers. This transformer can be used to create a power supply for +5V 4.5A and +12V 2.0A and -12V 0.3A after rectification, smoothing and suitable stabilisation.?
- Power rating : 120VA
- Primary winding : 230V
- Secondary winding 1 : 9VAC - 7.2A
- Secundary winding 2 : 15VAC - 3.2A
- Secundary winding 3 : 15VAC - 0.5A
- Diameter : 92mm
- Height : 49mm
- Mounting materials are included in the shipment.
