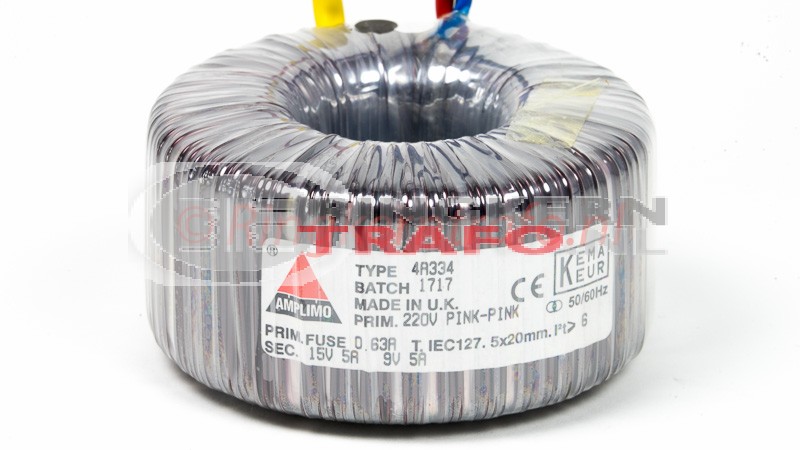

Amplimo toroidal transformer type 4A334 was designed for supplying microcontrollers and microcomputers. This transformer can be used to create a power supply for +5V 3.0A and +12V 3.0A after rectification, smoothing and stabilisation.?

Specifications :

• Power rating : 120VA
• Primary winding : 220V
• Secondary winding 1 : 9VAC - 5A
• Secondary winding 2 : 15VAC - 5A
• Diameter : 92mm
• Height : 49mm
• Mounting materials are included in the shipment
