MEC100 Mini Echoke

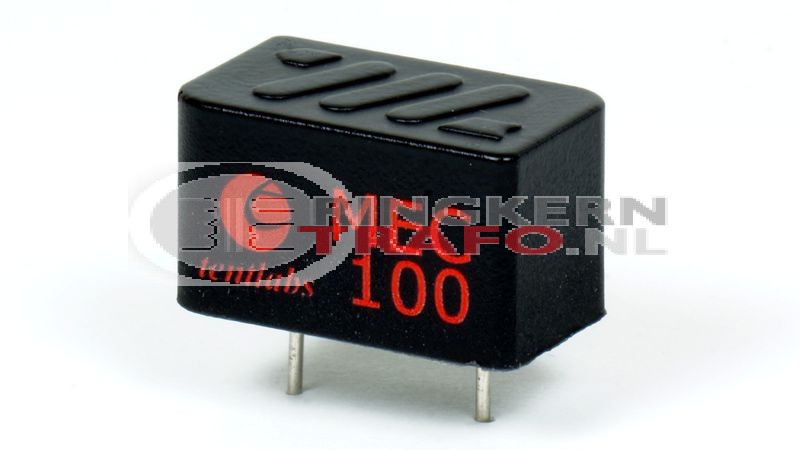

Tentlabs MEC100 mini E-choke

part number: TLMEC100

Temporarily sold out

€ 38.00 (inc VAT)
Amount:



Specifications MEC-100

  • maximum current 100 mA
  • maximum Vdc 800 V
  • Internal Limit : no
  • inductance 10 H
  • maximum voltage drop @ Imax 9 V
  • short circuit protection no
  • protected for inverse connection yes
  • maximum heat production 0,9 W
  • minimum capacity C1 47 uF
  • optimal capacity C1 = C2 100uF

Downloads

Dutch language  :
NL MEC50 / MEC100 DESCRIPTION AND MANUAL (PDF)

English language  :
UK MEC50 / MEC100 DESCRIPTION AND MANUAL (PDF)
